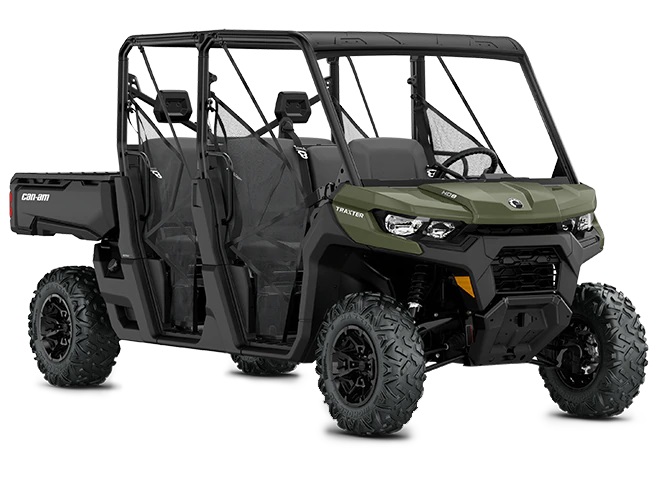

2021 Traxter MAX DPS HD8 - OHG Quads

2021 Traxter MAX DPS HD8

lloyd July 18, 2020 0

From £17,699*

READY TO TAKE THE JOB.

Engine

Engine	HD8
Engine displacement	799
Type	HD8: 55 hp ( 41 kW ), Rotax® 799.9 cc, V-twin, liquid cooled
Fuel Delivery System	Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission	PRO-TORQ transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train	Selectable Turf Mode / 2WD / 4WD with Visco-Lok QE auto-locking front differential
Driving Assistance	Electronic Hill Descent Control ECO™ / ECO Off / Work modes
Power Steering	Dynamic Power Steering (DPS)

Suspension

Front Suspension	Double A-arm / 25.4 cm travel
Front Shocks	Twin tube gas charged shocks
Rear Suspension	TTA with external sway bar / 25.4 cm travel
Rear Shocks	Twin tube gas charged shocks

Tyres and Wheels

Front Tyres	Maxxis Bighorn 2.0 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tyres	Maxxis Bighorn 2.0 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels	14-in. (35.6 cm) cast-aluminum

Brakes

Front	Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear	Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers

Dimensions and Capacities

L x W x H	389.6 x 161.2 x x 193 cm
Wheel Base	294 cm
Ground Clearance	28 cm
Chassis Cage	Profiled cage ROPS approved
Dry Weight	794 kg
Cargo Box Dimensions	96.5 x 138.4 x 30.5 cm
Cargo Box Capacity	454 kg
Tailgate Load Capacity	113.4 kg
Storage Capacity	Total: 42.1 L Under dash: 22.8 L Dash: 6.9 L Water-resistant and removable toolbox: 6.3 L Armrests and cup holders: 6.1 L
Towing Capacity	1,134 kg
Payload Capacity	793.8 kg
Fuel Capacity	40 L
Person Capacity	6

Features

Gauge	4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery	12 V (18 amp/h)
Magneto	650 W
Instrumentation	Lighter type DC outlet in console (20-A)
Lighting	140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch	N/A
Seat	Dual VERSA-PRO bench seats with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel	Adjustable tilt steering
Protection	Integrated front steel bumper, HMWPE central skid plate
Hitch Type	2-in. hitch receiver

Warranty

Factory	2 years BRP limited warranty
