READY TO TAKE THE JOB. Take command of unmatched all-terrain performance with the two seated Outlander MAX XU+. The most legendary Rotax power tows up to 750 kg. We won’t say it will make work easy, but easier.
Up to 60 km/h

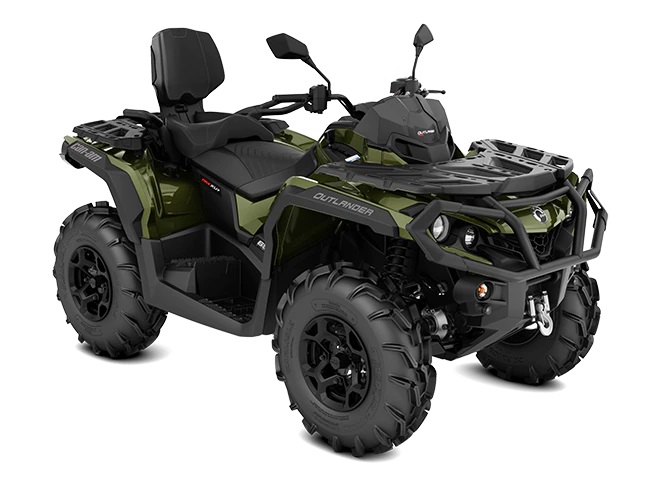

2022 Outlander MAX XU+ 650 T
ENGINE
| Engine |
|
| Engine displacement |
|
| Type |
- 650: 59 hp ( 44 kW ), Rotax 649.6 cc V-twin, liquid cooled
|
| Fuel Delivery System |
- Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
|
| Transmission |
- CVT, P / R / N / H / Extra Low L, standard engine braking
|
| Drive Train |
- Selectable 2WD / 4WD / Lock 4WD with Visco-4Lok front Differential
|
| Power Steering |
- Tri-Mode Dynamic Power Steering (DPS)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SUSPENSION
| Front Suspension |
- Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
|
| Front Shocks |
|
| Rear Suspension |
- Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
|
| Rear Shocks |
|
|
|
|
|
|
|
|
|
TYRES & WHEELS
| Front Tyres |
- Carlisle† ACT HD 26 x 8 x 12-in. (66 x 20.3 x 30.5 cm)
|
| Rear Tyres |
- Carlisle† ACT HD 26 x 10 x 12-in. (66 x 25.4 x 30.5 cm)
|
| Wheels |
|
|
|
|
|
|
|
BRAKES
| Front |
- Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
|
| Rear |
- Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
|
| Technology |
|
DIMENSIONS & CAPACITIES
| L x W x H |
|
| Wheel Base |
|
| Ground Clearance |
|
| Dry Weight |
|
| Rack Capacity |
- Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
|
| Storage Capacity |
|
| Towing Capacity |
- 750 kg trailer with brakes 395 kg trailer without brakes
|
| Fuel Capacity |
|
| Seat Height |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FEATURES
| Gauge |
- 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
|
| Magneto |
|
| Instrumentation |
- Lighter type DC outlet in console, standard connector in the back (15-A)
|
| Anti Theft System |
- RF Digitally Encoded Security System (D.E.S.S.™)
|
| Lighting |
- 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
|
| Winch |
- 3,500-lb (1,588 kg) winch
|
| Seat |
|
| Protection |
- Heavy-duty front bumper,Heated grips, Mudguards
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WARRANTY
| Factory |
- 2 years BRP limited warranty
|
