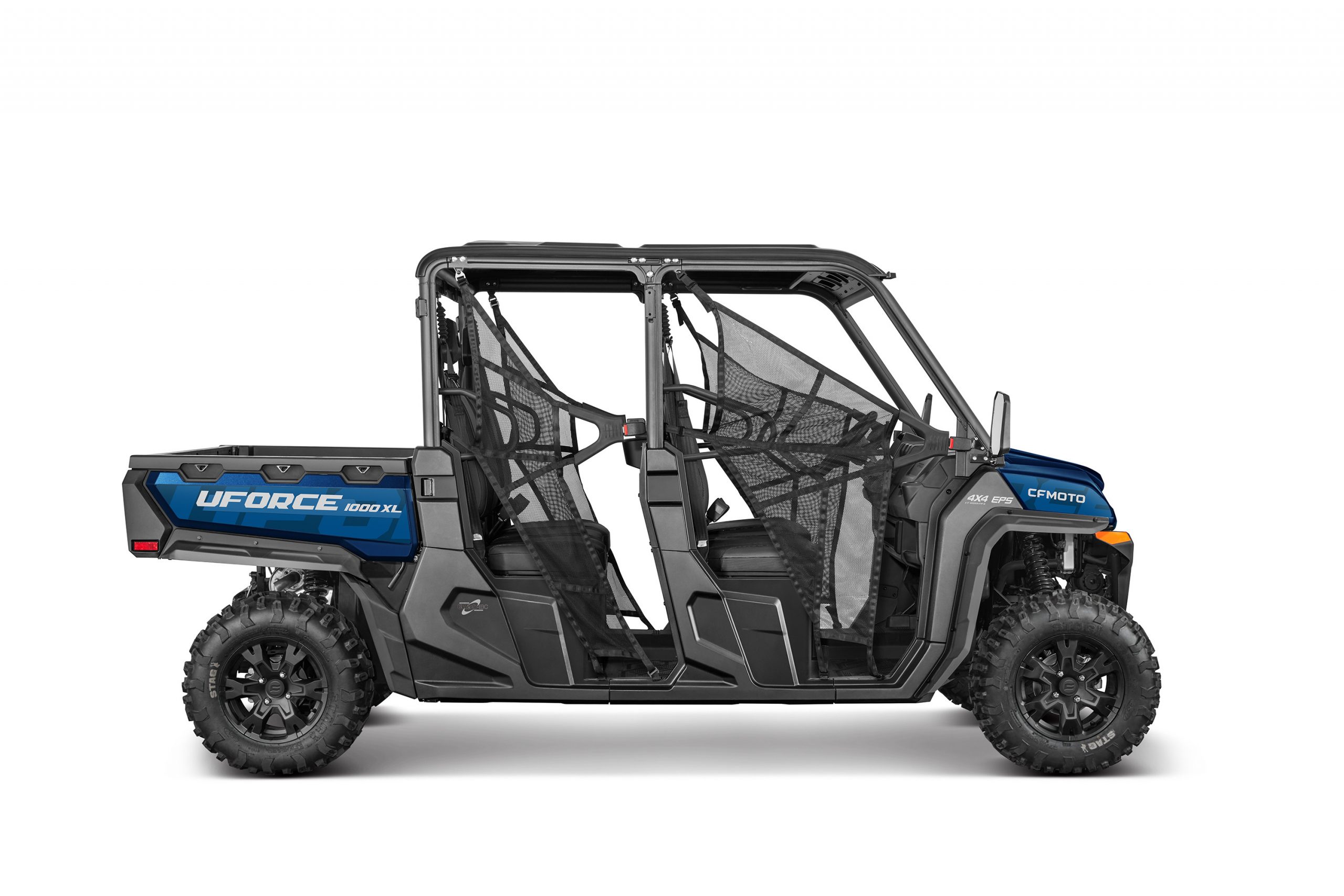

UFORCE 1000 XL

2023 UFORCE 1000 XL £16,899

The all new 2023 UFORCE 1000 XL has evolved from the UFORCE 1000 for more capability and more comfort with a redesigned cab for 6 seats, an improved frame, suspension and braking, plus an updated dashboard. Featuring our most powerful V-Twin liquid-cooled engine, this is our most rugged utility Side-by-Side yet.

The UFORCE 1000 XL comes fully loaded as standard, with a large capacity tipping cargo bed, a Drive By Wire Electronic throttle for a smooth ride, a payload capacity of 660kg plus a towing capacity of 790kg. The biggest CFMOTO side-by-side will help you get more done around the farm, with durable Canadian built CVTech drive train and EPS (Electronic Power Steering) as standard.

Available Colours

Capable of the biggest demands

With 53kw (71hp) and 74N.m torque, a 790kg Towing Capacity, 660kg Payload Capacity and 280mm minimum ground clearance. The only thing that isn’t big about the UFORCE 1000 XL is the price.

Specification

Engine

• Engine Type: V-Twin cylinder,Liquid cooled,4-stroke,8-Valve,SOHC
• Displacement: 963 cc
• Maximum Power: 53/7000 kW/rpm
• Maximum Torque: 74/6500 N.m/rpm
• Compression Ratio: 10.6:1
• Fuel Supply: EFI
• Ignition: ECU
• Transmission: CVT

Chassis

• Drive: Switchable 2WD/4WD
• Brakes: Dual 230mm discs with hydraulic single-piston calipers front and rear
• Suspension: Front/Rear: Double A-arm, independent suspension, 230mm wheel travel, rear external sway bar
• Shock Absorber: Front/Rear: Coil spring + oil damping
• Rim: Front:14 x 7.0; Rear:14 x 8.0
• Tyres: Front:27×9.00R14 8PR(60L); Rear:27×11.00R14 8PR(66L)

Dimensions

• Length x Width x Height: 3745×1615×1880 mm
• Wheelbase: 2850 mm
• Minimum Ground Clearance: 280 mm
• Minimum Turning Diameter: 5.5 m
• Curb Weight: 945 kg
• Towing Capacity: 790 kg
• Payload Capacity: 660 kg
• Rear Cargo Capacity: 210 kg
• Fuel Capacity: 40 L

Key Features

• Electronic power steering (EPS)
• Projector beam headlights with LED accents
• Tilt adjust steering wheel
• Underseat tool box
• 40 litre fuel tank
• 2 and 4 wheel drive
• USB and 12v socket
• 1000cc V twin, liquid cooled with electric start
• Hi/Low/Neutral/Reverse and park
• Front gull wing design independent A-arm
• Full glass screen with wiper option
• Optional full DFK cabin
• Electronic front winch with wireless remote
• LED rear lights
• Adjustable driver’s seat
• Multifunctional digital dashboard
• 14″ black alloy wheels
• High clearance A-arms
• Horn
• Bosch fuel injection and electronics
• Front and rear hydraulic disc brakes
• Minimum turning diameter 5500mm
• Towbar and trailer plug in
• 3 point retractable seatbelts
• Redesigned cab for 6 seats
• Adjustable suspension
• 27″ beefy offroad tyres
• Cup holders in foldable middle seat/armrest
• Fly by wire throttle
• Canadian CVTech automative drive system
• Braided steel brake lines
• 790kg towing capacity
